RM-1
Standard IR sensor was capable to work with this remote, and UIR works fine with it. The exact freq was not measured, but its probably something fractional of 364 kHz resonator freq - most probably, 36.4 kHz. |
|
Control codes as reported by UIR receiver

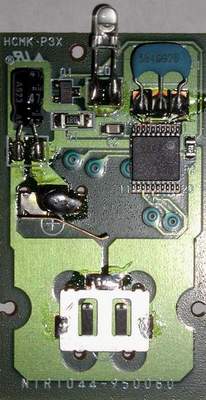

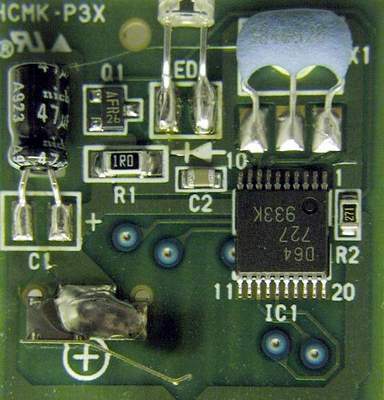

Code Button 61 DC 80 7F 00 00 Fire 0110 0001 1101 1100 1000 0000 0111 1111 0 0 61 DC 40 BF 00 00 W 0110 0001 1101 1100 0100 0000 1011 1111 0 0 61 DC C0 3F 00 00 T 0110 0001 1101 1100 1100 0000 0011 1111 0 0 61 DC 20 DF 00 00 - 0110 0001 1101 1100 0010 0000 1101 1111 0 0 61 DC A0 5F 00 00 + 0110 0001 1101 1100 1010 0000 0101 1111 0 0 Parts R2 270 Ohm R1 1 Ohm C1 47x6.3V Q1 AFR26Its powered by std CR2032 3V lithium cell. |
![]() |
|
![]() |
![]() |
|
